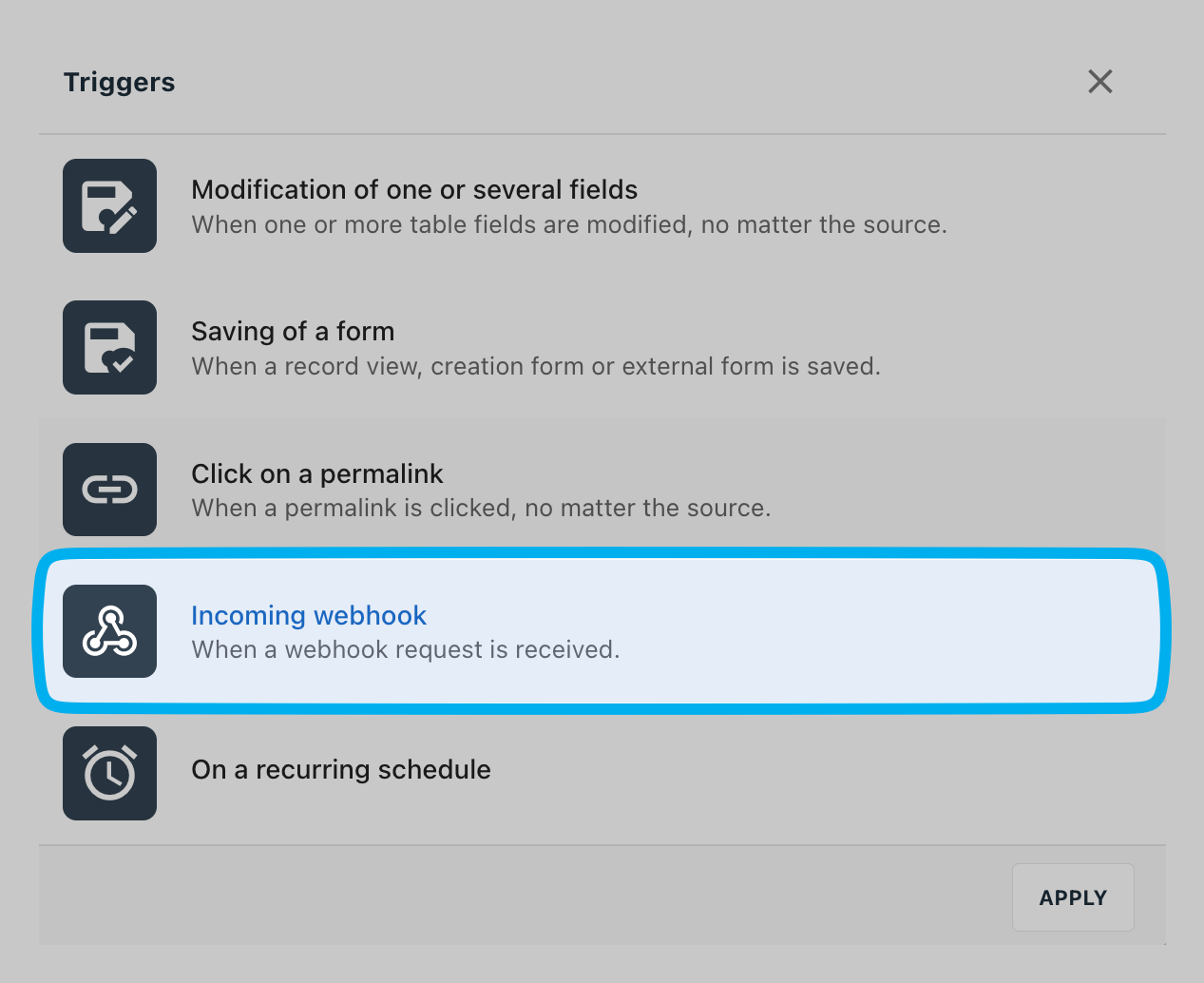

Trigger: Incoming Webhook

Connect TimeTonic to external services

The Incoming Webhook trigger lets you start an automation in TimeTonic when an external service (such as n8n, Make, Zapier, or a custom script) sends an HTTP request to a dedicated URL.

⬇️ Essential to enable use cases such as:

  • Automatically create a row in TimeTonic from a form filled out on an external website.

  • Receive data from a third-party app (CRM, prospecting tool, etc.) and centralize it in a TimeTonic table.

  • Update an existing row in TimeTonic when a status changes in another system.

  • Trigger a TimeTonic automation every time an event occurs in another platform (e.g., new sale, new contact, new ticket, …).

  • Partially synchronize data between a business tool and TimeTonic (e.g., only send certain useful information to a specific team).

➡️ Webhook behavior — introduction

When a call is made to the Webhook URL generated by TimeTonic, the automation is triggered automatically.
The content of the call (in JSON format) can be used as variables in the configurations below, enabling three different behaviors to manage rows in the table.

➡️ “Webhook trigger” configuration window

Screenshot of the Webhook Trigger window





1️⃣ Webhook password

2️⃣ Data structure {…}

3️⃣ Row identification

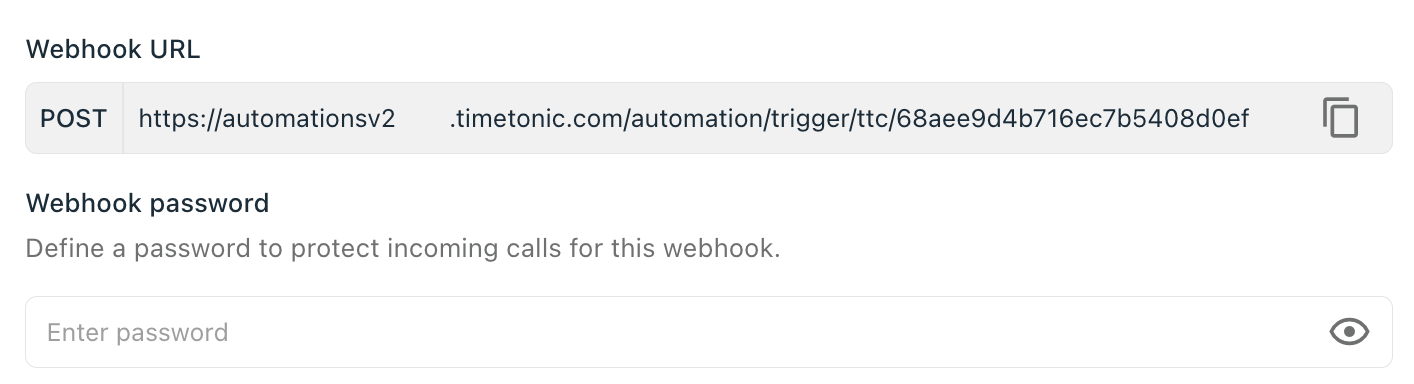

1️⃣ Webhook password

When you configure an inbound webhook in TimeTonic, you can choose to secure calls with a custom password.
If a password is set, only calls containing the correct signature will be accepted.
Otherwise, all calls will be authorized without verification.



🔓 Method without authentication

This method allows you to call a TimeTonic webhook without setting a password. No authentication is required.

📥 Open Webhook Call (No Password)

If no password is set on the TimeTonic webhook, the HTTP request can be sent freely without any additional header.


Configuration on caller side:

🔧 Parameter ✅ Value
Method POST
Target URL https://automationsv2.timetonic.com/api/automation/trigger/XXXXXXXXX
Authentication None

✅ This configuration works as long as no password is defined on the TimeTonic webhook trigger.

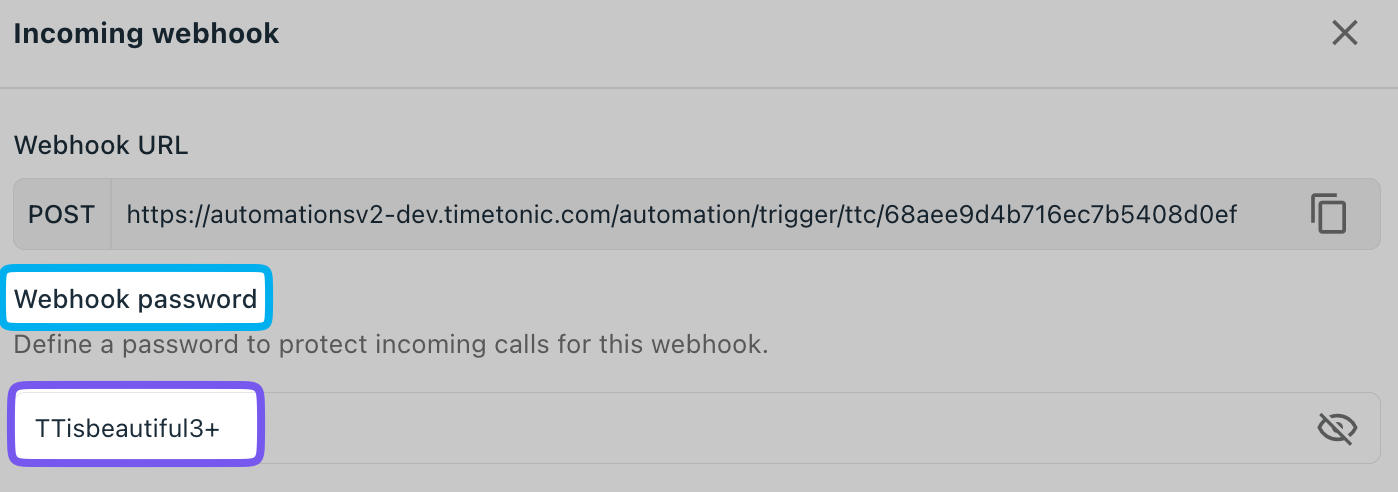

🔐 Password-based method (custom authentication)

This method allows you to secure a webhook call using a password set in TimeTonic.

🔐 Secure Webhook Call with Password

When a password is defined in the TimeTonic webhook, the HTTP request must include a SHA-256 hash of the body content concatenated with the password, inserted in the X-PayloadSeal header.

Must contain at least 8 characters, including a digit, a lowercase, an uppercase, and no space.

Configuration on caller side:

🔧 Parameter ✅ Value
Method POST
Target URL https://automationsv2.timetonic.com/api/automation/trigger/XXXXXXXXX
Password Encoding SHA-256 of {body} + password
Inserted in header X-PayloadSeal
Request Header { "X-PayloadSeal": "your_hash_here" }
Request Body { "id": "123" }

Example hash calculation:
SHA256('{ "id": "123" }TTisbeautiful3+') ⇒
1615f4baef74d03b8447c378a309fb2ff03ec7b57595753b111b55d7c3a79d19

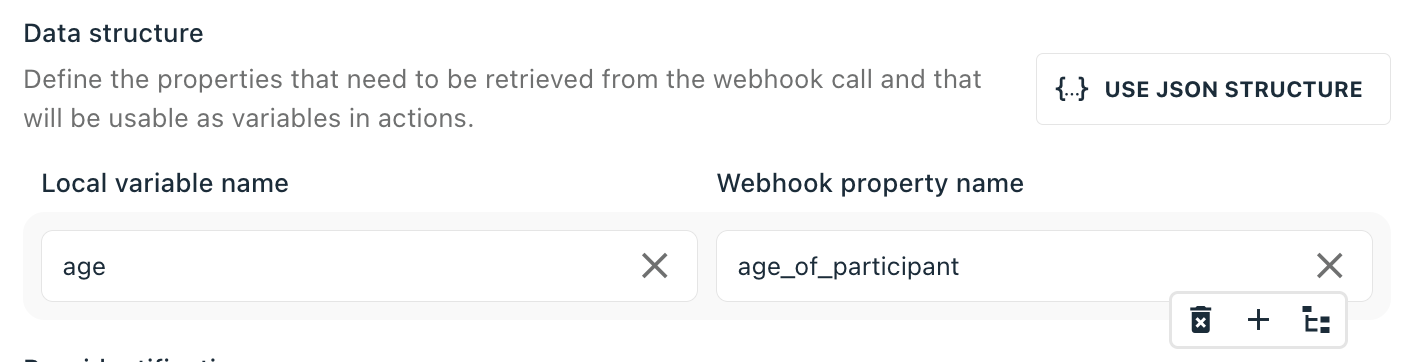

2️⃣ Data structure

The data structure lets you extract elements from the JSON received via the webhook and turn them into local variables that you can use in your TimeTonic automation actions.

Goal

Define which elements of the JSON should be extracted and under what name they will be referenced in TimeTonic.

In the structure fields:

Parameter Example Description
🏷️ of the local variable name age ℹ️ This is the name you will give to the variable in TimeTonic so you can reuse it in your automated actions.
🔐 of the Webhook property name age_of_participant

ℹ️ This is the exact property (key) name in the JSON received by the webhook.

Or in JSON in the editor:

{
  "key1": "value1",
  "key2": "value2"
}

✅ Result: TimeTonic will read the JSON content and automatically create the variables “key1” and “key2”…



4️⃣ Row identification

Choose from the 3 options below in the last step of your configuration window to define how TimeTonic should handle rows when a call is received:

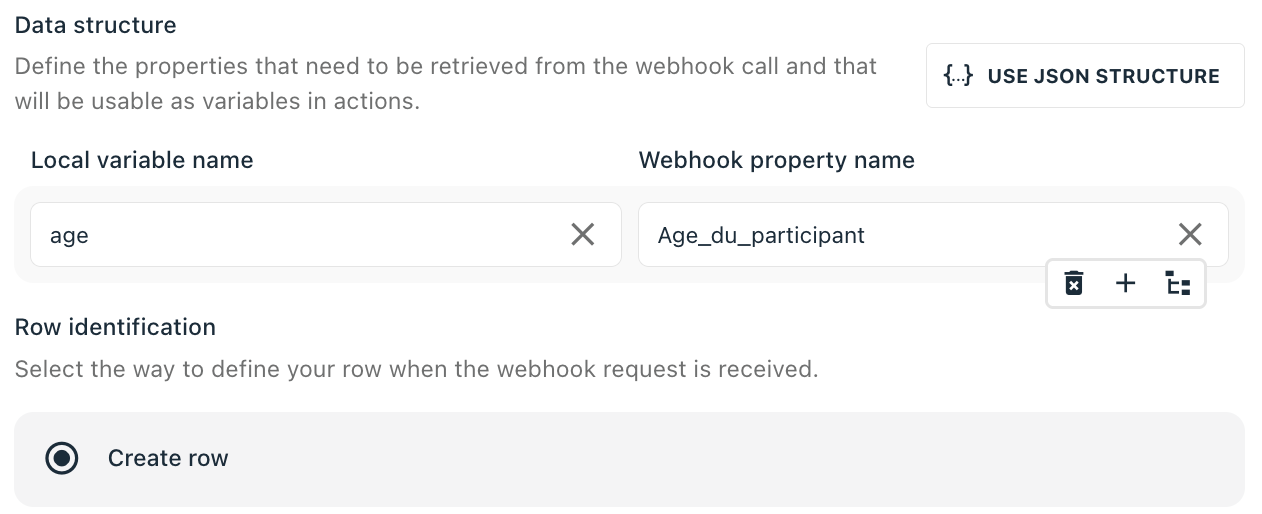

➡️ Unique row creation

Use when:
Each webhook call should generate a distinct row, with no prior existence check.
Ideal for submission, logging, or continuous recording systems.

➡️ Configuration in the external tool:

Leave empty if you only want to trigger the webhook to then run a writing/creation action in your scenario…

Or, if you want to pass parameters in your webhook call:

→ Insert in the body the properties carrying the information coming from your tool

Example parameters:

Property name Variable description
Name example : Participant age
Value example : 24

➡️ Configuration in TimeTonic:

  • Tick ☑️ Unique row creation

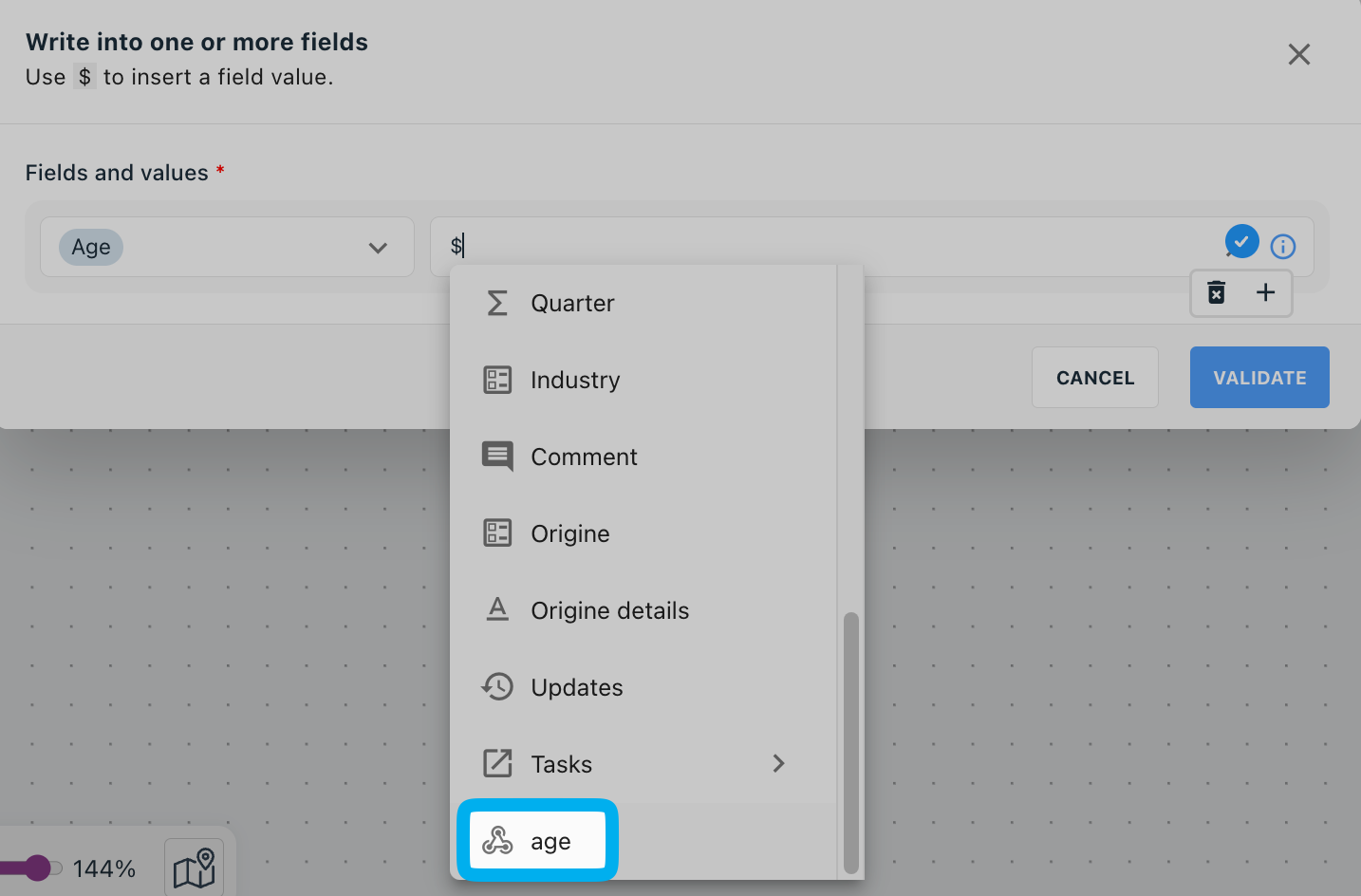

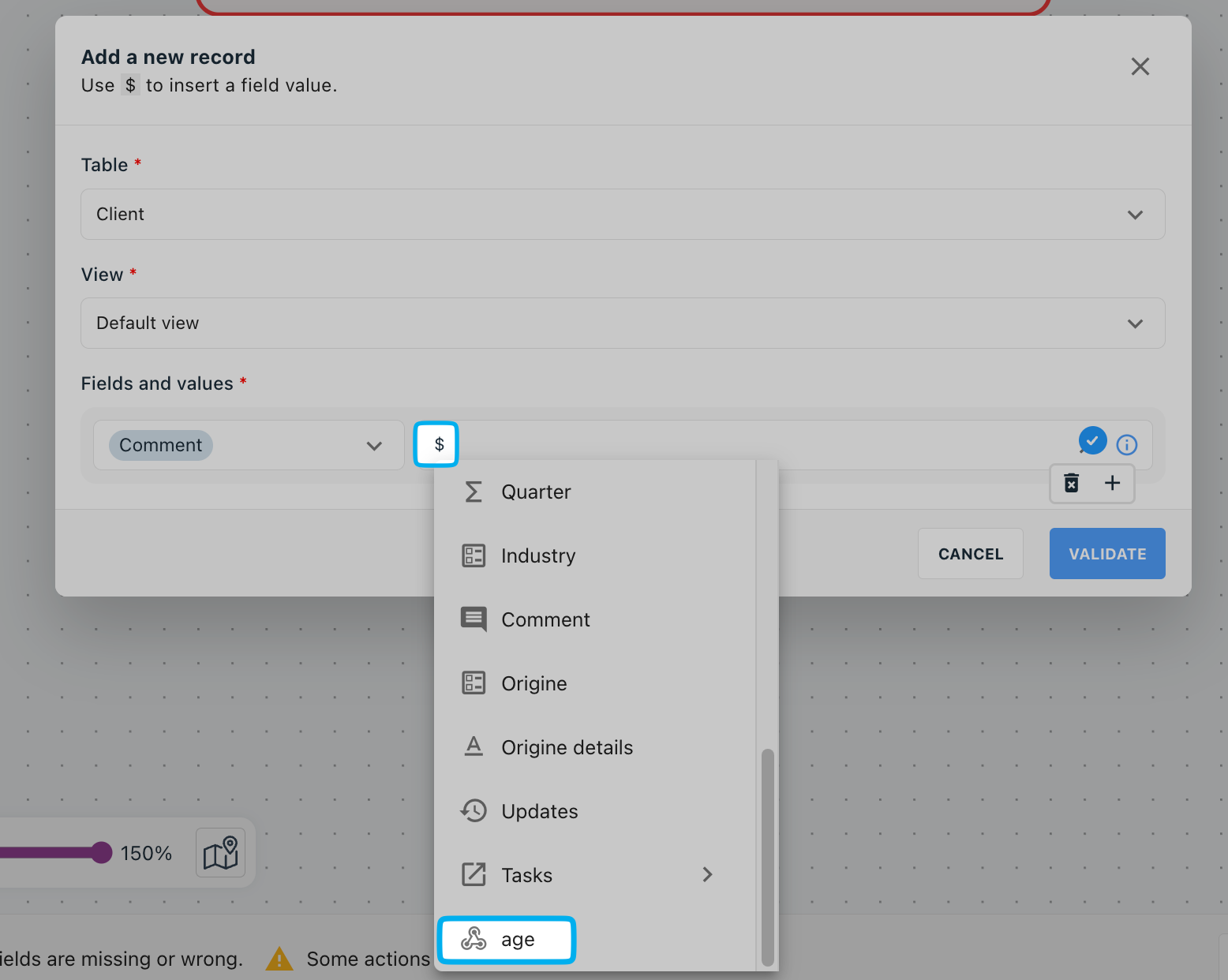

Note: After the incoming webhook trigger - row creation (and possibly control blocks), the action to write to the created row can be Row Creation or Write to a field. The imported value from the webhook (here in the local variable "age") is found at the bottom of the drop-down list.

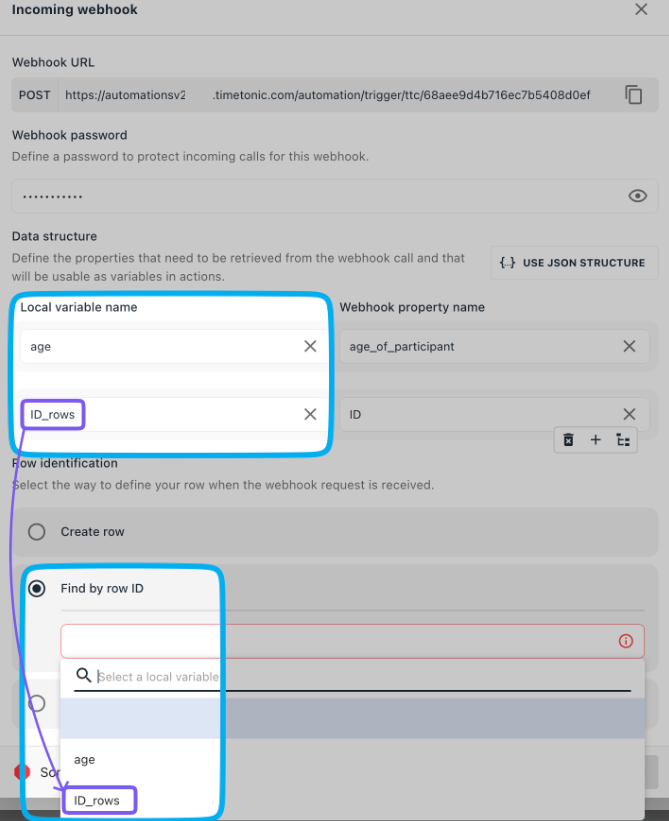

➡️ Identify a row by its ID

Use when:
You have the row’s unique ID to update. This mode targets that row precisely.
Useful when you’ve already retrieved the ID in a previous step or from another system.

➡️ In the external tool:

Pass parameters in your webhook call:

→ Insert in the body the properties carrying the information coming from your tool

Parameters:

Property name Variable description
⬇️ Target the row ID
Name  example : ID
Value  example : 12096043
Property name Variable description
Name  example : participant age
Value  example : 24

➡️ Configuration in TimeTonic:

  • Tick ☑️ Identify a row by its ID

  • Select the local variable you created, which will carry the TimeTonic row ID from the external tool.

Note: After the incoming webhook trigger - identify a row via its ID (and possibly control blocks) the action to write to the identified row is Write to a field. The imported value from the webhook (here in the local variable "age") is found at the bottom of the drop-down list.

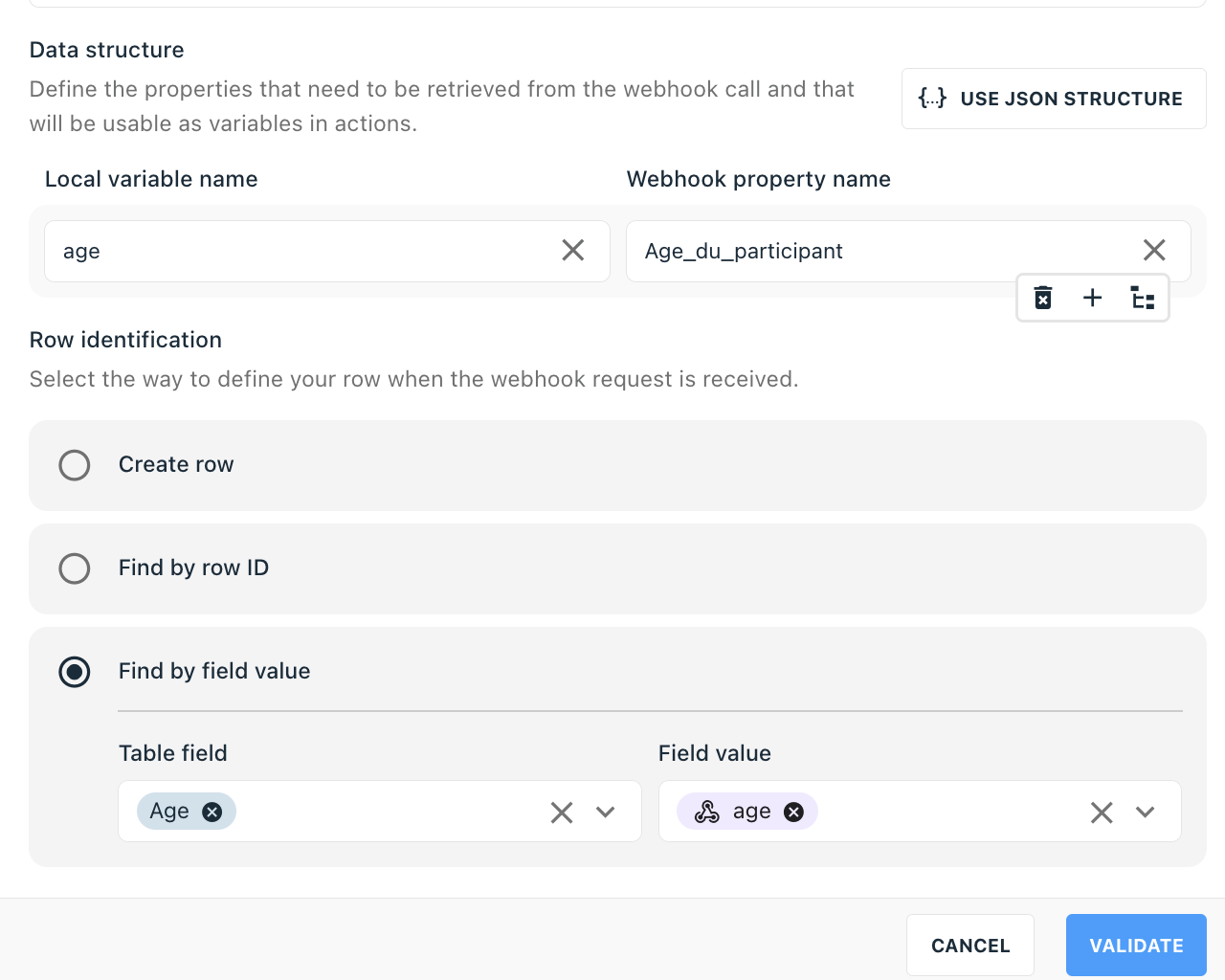

➡️ Identification via a field value

Use when:
You want to update a row based on a unique field (e.g., email, customer code…).
The webhook compares the received value to a field in the table to determine whether it should update the matching row defined in your scenario action.
If no match: the action fails.

➡️ In the external tool:

Pass parameters in your webhook call:

→ Insert in the body the properties carrying the information coming from your tool

Example parameters:

Property name Variable description
Name age_of_participant
Value 24

You can insert additional pairs for the fields to update.

➡️ Configuration in TimeTonic:

Tick ☑️ Identify via a field value

  • Select the field and the value to identify

“TimeTonic will retrieve from the data sent the value of the field designated as the identification field and will attempt to find the first row whose associated TimeTonic field matches.”
— If matched: the row is updated
— If no match: the scenario stops



Note: After the incoming webhook trigger - identify a row via its ID (and possibly control blocks) the action to write to the identified row is Write to a field. The imported value from the webhook (here in the local variable "age") is found at the bottom of the drop-down list.

➡️ Generating the Webhook URL

  1. Validate the incoming webhook settings
  2. Create one or more actions (see 🔗 See related articles)
  3. Add a title to your automation
  4. Click the Create button
  5. Re-open your incoming webhook trigger (your URL is generated—you can copy it to paste into your external services).



Continue editing your conditions and actions in this automation scenario.
