The Planner view in TimeTonic allows you to visualize and organize data in a timeline format. It offers drag-and-drop functionality, quick event creation, and right-click editing. Events can be customized with filters and colors. It's an interactive and flexible tool for managing dates and projects.

Here are the steps to use this feature:

1️⃣ Access the Planner View:

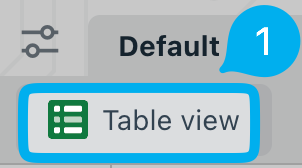

1️⃣ Click on the view option from the table's horizontal bar to switch to the timeline display.

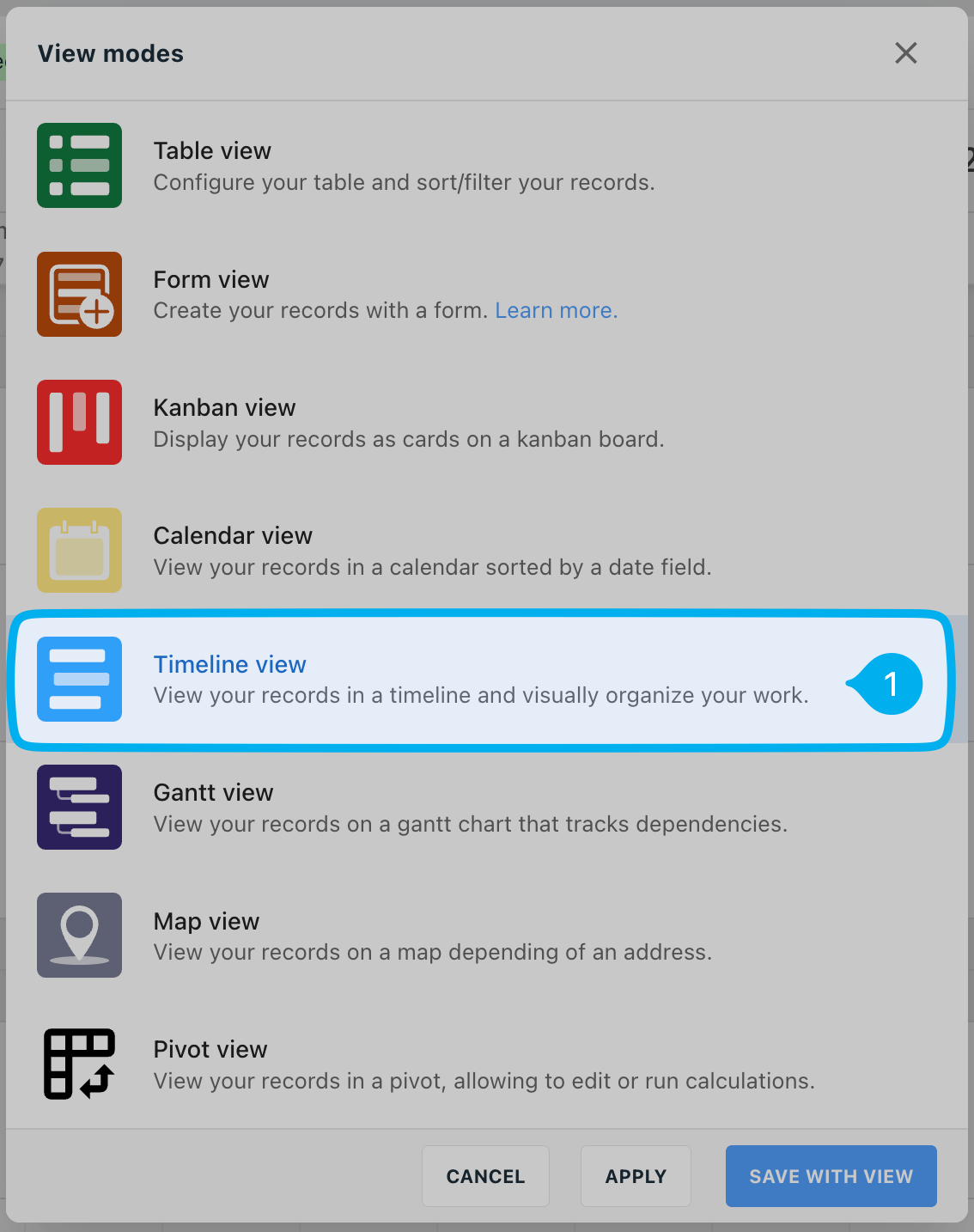

2️⃣ In the view mode form that opens, select the Planner View

🔧 Configuration options:

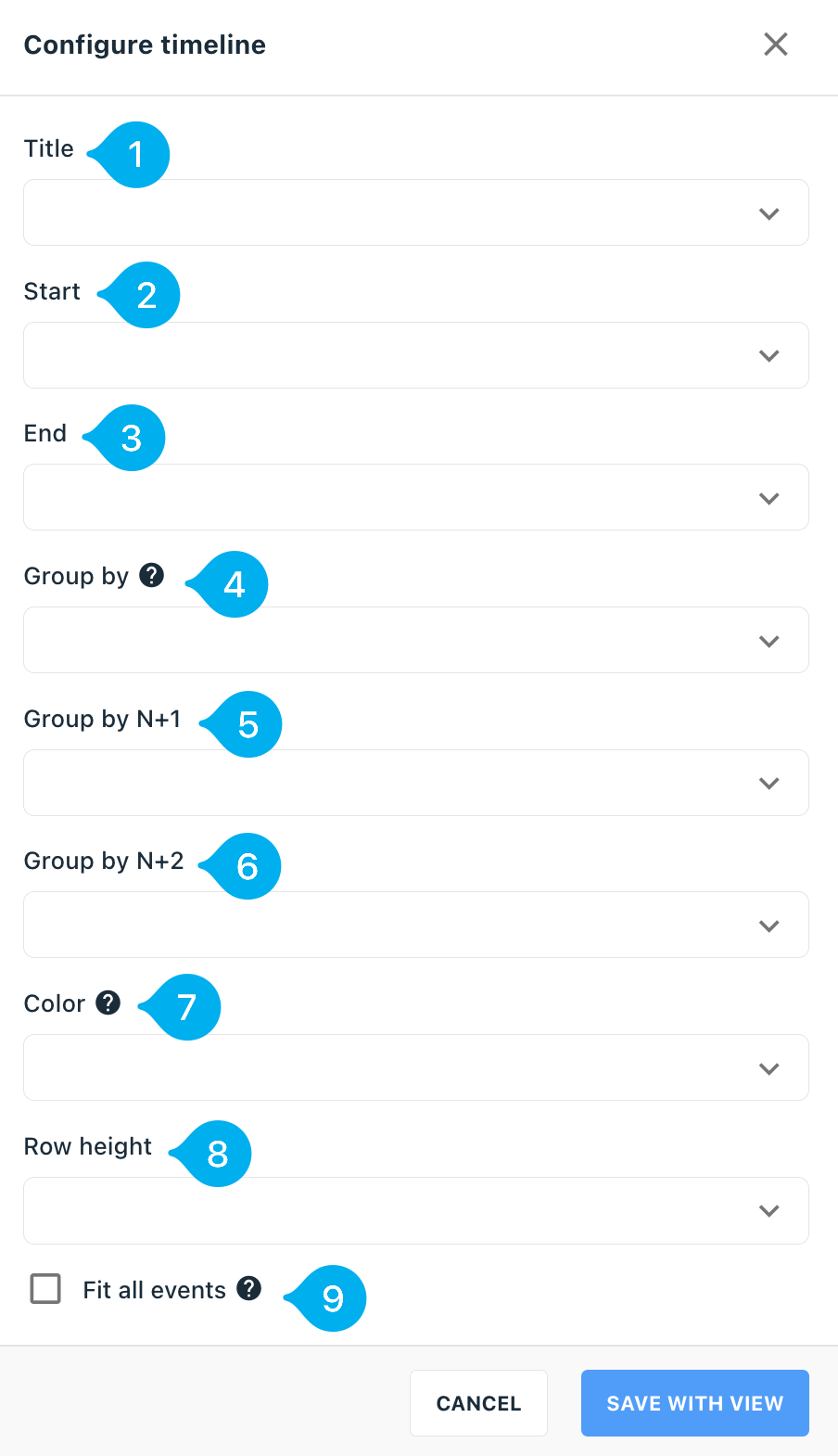

The Configure Planner View window opens 🛠️

1️⃣ Title 📝: Choose a field from your table to serve as the title for each element in the timeline.

2️⃣ Start Date 🕒: Select a Date 📅 field to define the start of your events.

3️⃣ End Date 🕓: Select a Date 📅 field to define the end of your events.

4️⃣ Group by 🗂️: Stack your records using linked table columns in the view table.

• ➡️ Group by
• ➡️ Group by N+1
• ➡️ Group by N+2

5️⃣ Color 🎨: Customize your elements with colors based on a Selection field.

ℹ️ Click on Configure Planner ⚙️ in the right-hand options bar to adjust your configured options.

🔰 Example of a three-level grouped configuration.

✒️ Customize the Planner View:

🎛️ Dynamic uses of the view:

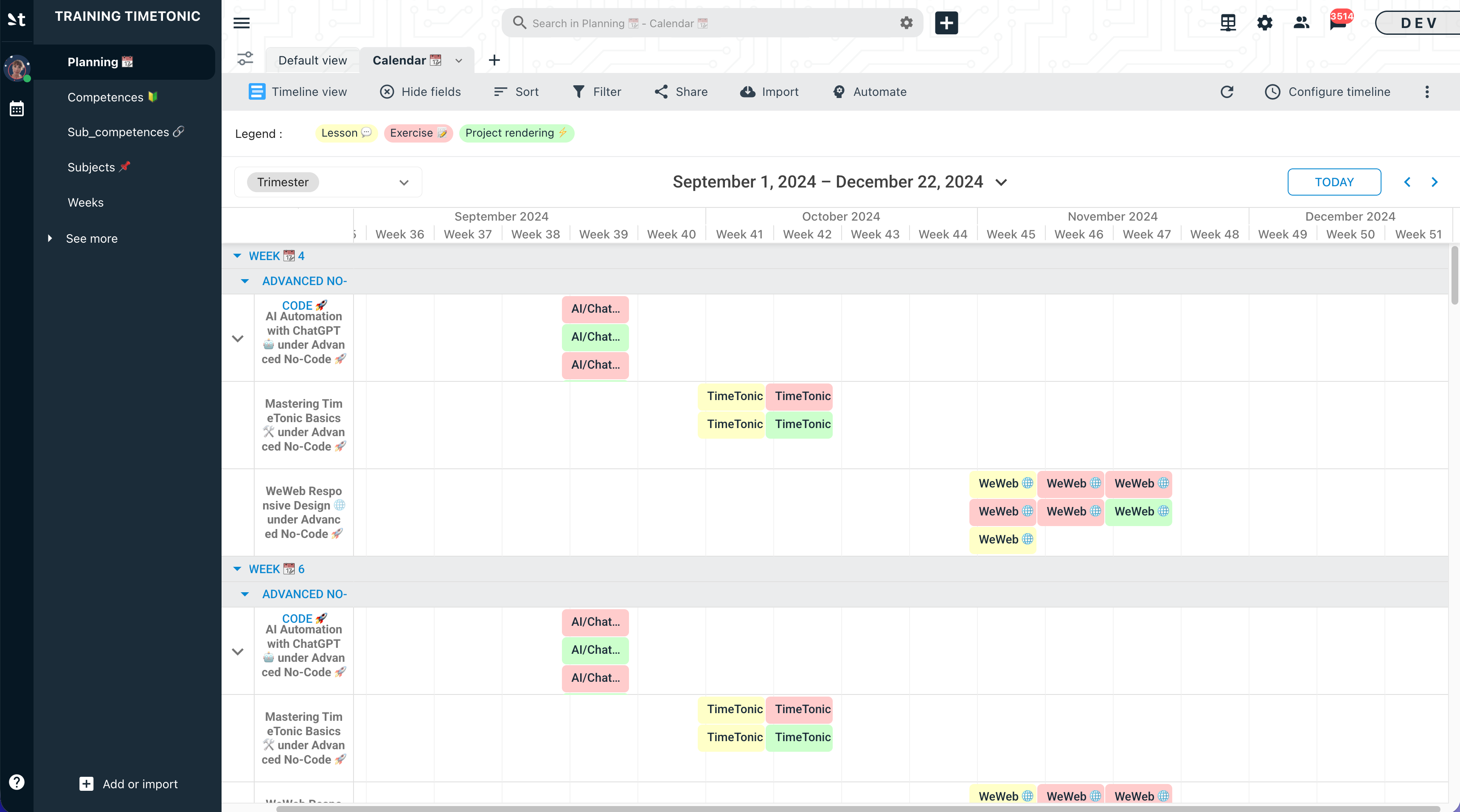

The Planner 🗓️ view is automatically updated based on your table's data. Modify your fields in real time and see the changes directly in the timeline.

➡️ Drag and drop: Easily move your events within the timeline using drag and drop to reposition an event on the time range.

➡️ Adjust the layout: Stretch or shorten an event's time range in the timeline to adjust its duration using the small ↔️ handle that appears when hovering over the right or left edge of the element.

➡️ Create with a double-click: Double-click on an empty space in the timeline to create a new event. A form will open, allowing you to add the necessary details.

➡️ Open the record with a single click: Click once on an element to open its record.

➡️ Right-click for additional actions: Right-click on an event to access the options to delete or duplicate the record.

🔍 Apply filters: Use filters to display only relevant events.
